    G3 G4 Primary 20x20x2 Pleated Air Filter For Ventilation System

    Ask Lasest Price
    Brand Name : RS
    Model Number : BKL
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 2000 Piece/Pieces per Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

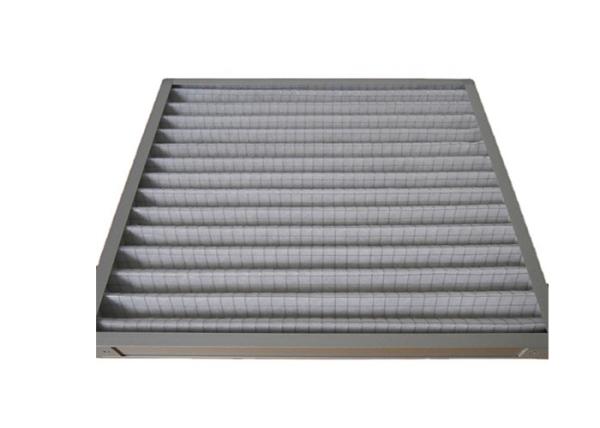

    G3 G4 Primary 20x20x2 Pleated Air Filter For Ventilation System

    Washable Metal Frame Primary Air Filter G3 G4 For Ventilation System

    Frame: Aluminium alloy, aluminum profile, GI.

    Media: Synthetic fiber (non-woven).

    Protecting Mesh: Wire mesh.

    Efficiency: 80%-95%(G3 G4).

    Construction: Panel.

    Bursting pressure drop: ≥450Pa

    Recommended final pressure drop: ≤180Pa


    Application:

    The filters are used for pre-filtration of the air condition and clean room filtration system.


    Characters:

    Large flowing rate, lower resistance and high efficiency precipitator.


    Form and operation conditions:
    Frame material: Knocked-down frame design, the filter media can be reused repeatedly after washing, little resistance and high efficiency precipitator.

    Customized size is also available

    ModelWidthHeightDepthFilter areaAirflow and pressure drop
    (mm)(mm)(mm)(m2)(m3/h&pa)
    BKL24×24×4594594962.661700/183400/68
    BKL24×12×4594289961.3850/181700/68
    BKL24×20×4594492962.21420/182840/68
    BKL20×20×4492492961.821180/182360/68
    BKL20×16×4492391961.45935/181870/68
    BKL25×20×4619492962.31480/182960/68
    BKL25×25×4619619962.91860/183720/68
    BKL24×24×2594594461.751700/203400/70
    BKL24×12×2594289460.85850/201700/70
    BKL24×20×2594495461.461420/202840/70
    BKL24×18×2594445461.311275/202550/70
    BKL20×20×2495495461.211180/202360/70
    BKL20×18×2495445461.091060/202120/70
    BKL20×16×2495394460.97935/201870/70
    BKL20×12×2495289460.74715/201430/70
    BKL25×20×2622495461.521480/202960/70
    BKL25×18×2622445461.371325/202650/70
    BKL25×16×2622394461.181180/202360/70

    * Note: Pressure drop ±15% Odd sizes available.
