    Aluminum Frame MERV 11 Pleated Air Filter Synthetic Washable

    Ask Lasest Price
    Brand Name : RS
    Model Number : BKL
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 2000 Piece/Pieces per Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Aluminum Frame MERV 11 Pleated Air Filter Synthetic Washable

    Product Description

    1. Large effective filtration area, lower resistance, great dust holding capacity.
    2. Easy to be changed etc.

    Model: BKL

    Filter Media: Synthetic fiber (non-woven)

    Frame Material: Aluminium alloy, aluminum profile, GI

    Recommended final pressure drop: ≤180Pa

    Protecting Mesh: Wire mesh

    Efficiency: G3 (EN779), 80%
    G4 (EN779), 90%-95%

    Construction: Panel

    Filtration Grade: Prime

    Application: Prime panel filter is mainly used as the pre-filter of air conditioner system in commercial and industrial field.

    Specification

    Nominal thickness

    (inch)

    Nominal size

    (inch)

    Actual size(mm)

    Filter area

    (m2)

    Air flow /resistance

    (m3/h/pa)

    Height Width Depth
    4” 24×24×4 594 594 96 2.66 1700/18

    2”

    24×12×4 594 289 96 1.30 850/18 3400/68
    24×20×4 594 492 96 2.20 1420/18 1700/68
    20×20×4 492 492 96 1.82 1180/18 2840/68
    20×16×4 492 391 96 1.45 935/18 2360/20
    25×20×4 619 492 96 2.30 1480/18 1870/68
    25×25×4 619 619 96 2.90 1860/18 2960/68
    24×24×2 594 594 46 1.75 1700/20 3720/68

    1”

    24×12×2 594 289 46 0.85 850/20 3400/70
    24×20×2 594 495 46 1.46 1420/20 1700/70
    24×18×2 594 445 46 1.31 1275/20 2840/70
    20×20×2 495 495 46 1.21 1180/20 2550/70
    20×18×2 495 445 46 1.09 1060/20 2360/70
    20×16×2 495 394 46 0.97 935/20 2120/70
    20×12×2 495 289 46 0.74 715/20 1870/70
    25×20×2 622 495 46 1.52 1480/20 1430/70
    25×18×2 622 445 46 1.37 1325/20 2960/70
    25×16×2 622 394 46 1.18 1180/20 2650/70
    24×24×1 597 597 22 0.88 1190/20 2360/70
    1” 24×12×1 597 292 22 0.43 590/20 2380/70
    24×20×1 597 495 22 0.74 995/20 1190/70
    20×20×1 495 495 22 0.6 825/20 1990/70
    20×16×1 495 394 22 0.48 660/20 1650/70
    25×20×1 622 495 22 0.76 1035/20 1325/70
    25×16×1 622 394 22 0.61 825/20

    2070/70

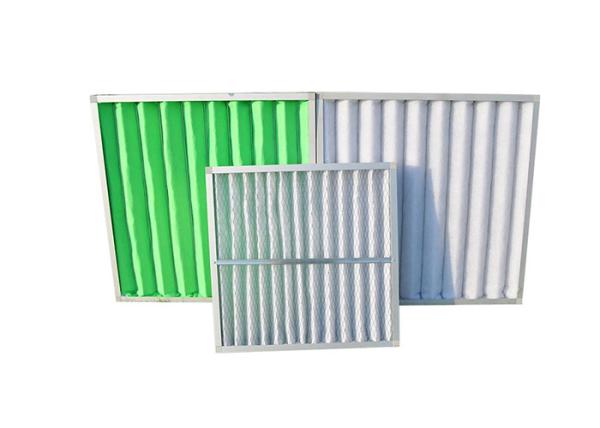

    Product Display
