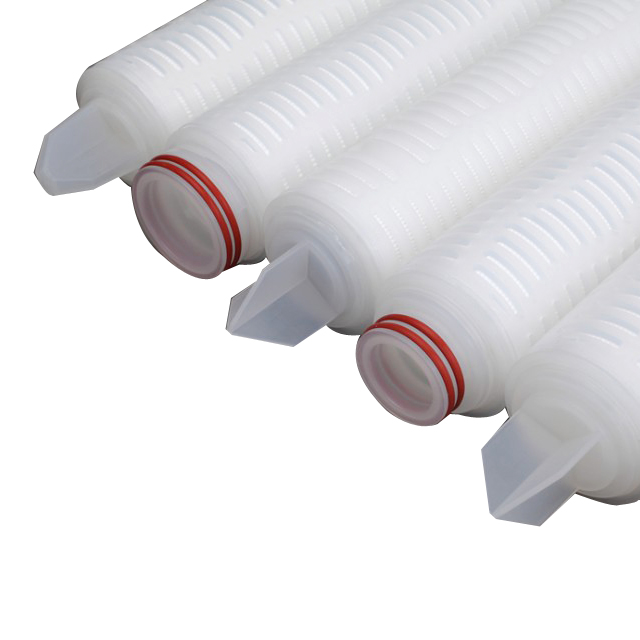

0.2 micron pp pleated membrane cartridge filter for Ro water system

Depth Pleated Filter Cartridge cater to high efficiency filtration requirement. They are constructed of superior quality fiber which providing dirt holding capacity. The pleated filter cartridge have a superior flow characteristics with low pressure drop. The high surface area enable high flow rates and long service life.

Specification

Material of Construction

• Filter Media: Polypropylene,PET,Glass fiber

• Support : Polypropylene

• Core /End adaptor: Polypropylene

• Netting:PE

• Seal Material:Silicone,EDPM,Buna,Viton, Teflon,

• Micron Rating: 1µm, 3µm, 5µm, 10µm, 20µm, 50µm

Dimensions

• Outside diameter: 2.7” (69mm)

• Length: 5", 10", 20", 30", 40"

Recommended Operating Conditions

Forward- 5bar @ 20°C

Forward- 3 bar@ 65°C

Change out different pressure:2.5bar@ 52°C

• Nominally rated filters designed for particle removal applications in liquids and gases;

• Complete Polypropylene structure offer wide chemical compatibility;

• Broad range of micron ratings from 0.1um to 100um;

• Thermally bonded and adhesive free, No media migration into the process fluid;

• Economical choice for the prefiltration and guard filtration before critical filtration;

• Pharmaceuticals,APIs, Biologics;
• Plating solutions, Ink;
• Fine Chemicals;
• Food & Beverages, Wine, Beer, Mineral Water;
• Semi-Conductor, LCD Display, Discs;

• Grade	Product	Micron(um)	End Cap	Length	O-ring/Gasket	Core
  F-Food & beverage P-pharmaceutical C-chemical E-electronics	PP1	010-0.1 020-0.2 045-0.45 065-0.65 100-1.0 300-3.0	AO-DOE(220) CN-226/FIN CF-226/FLAT BN-222/FIN BF-222/FLAT EN-222 three locking ears/Fin	05-5’’ 10-10’’ 20-20’’ 30-30’’ 40-40’’	S-silicone E-epdm N-nitrile T- encapsulated teflon V-viton	B-temperature resistant C-SS
