Medium Efficient Washable Synthetic Fiber Industrial Dust Bag
Pocket Filter Clean Room Air Filter F7
Product Description

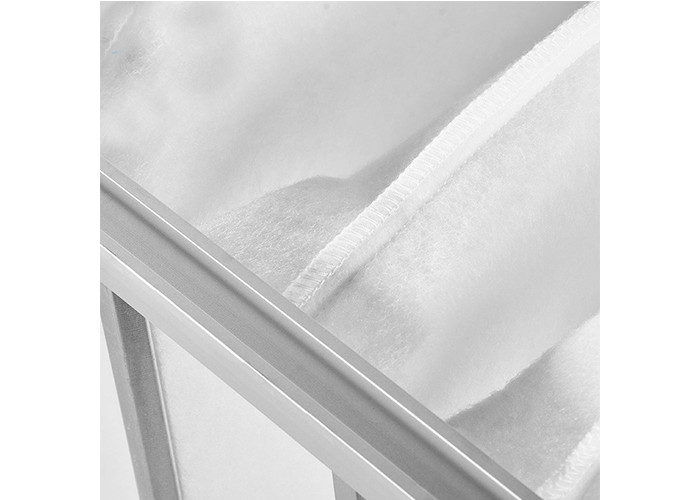

Bag-style medium-efficiency filter with its unique bag structure
ensures that the air flow is evenly filled with the entire bag. The
unique hot-melt technology prevents over-squeezing or leakage
between the bags, which reduces resistance and maximizes dust
holding capacity. The reinforced "bag support grille" prevents the
filter from shrinking or bending under extreme operating
conditions.
The medium-efficiency bag filter can be used as an ideal
medium-efficiency filter for use in environments with high
humidity, high airflow, and high dust loads. After the introduction
of the bag filters, their application in the pharmaceutical,
automotive and food manufacturing industries, commercial buildings,
and various industrial and ventilation systems have successfully
demonstrated that they have increased their industry standards with
value and performance
Filter class | | | Initial pressure drop(Pa) | | Average efficiency%(@0.4um) | |
G4 | 592*592*600-6P | 3400 | 35 | 91 | - | 4.4 |
G4 | 592*592*600-8P | 3400 | 30 | 91 | - | 5.7 |
M5 | 592*592*600-6P | 3400 | 45 | 95 | 46 | 4.4 |
M5 | 592*592*600-8P | 3400 | 40 | 95 | 46 | 5.7 |
M6 | 592*592*600-6P | 3400 | 65 | ＞99 | 73 | 4.4 |
M6 | 592*592*600-8P | 3400 | 60 | ＞99 | 73 | 5.7 |
F7 | 592*592*600-6P | 3400 | 85 | ＞99 | 85 | 4.4 |
F7 | 592*592*600-8P | 3400 | 80 | ＞99 | 85 | 5.7 |
|
Features
-Aerodynamically optimized filter pockets are foamed into a
polyurethane header frame. This extremely stable design ensure
leakfree operation.
-The inner metal support structure in the PU frame prevents from
frame breakage and deformation.
-The self supporting filter pockets are leakfree welded and burst
proof > 5000 Pascal.
-Integrated welded-in diamond shaped spacers guarantee optimum air
flow through the pockets and 100% use of the installed filter
surface.
-The materials used (filter media and frame) are self-extinguishing
according to DIN 53438 (F1) and have a UL certificate. --WP filters
can be operated up to 70°C and 100% relative humidity.
-The consistently high quality of every single filter is guaranteed
by our modern quality management system in accordance with ISO 9001
and ISO 14001.
-Filters are silicone free and passed the paint compatibility test
All filters are available in the usual standard dimensions.
----Full size versions (592x592mm) are delivered with 6 or 8
pockets.
-Half size versions are delivered with 3 or 4 pockets.
Application
- pocket filters are used in the supply, exhaust and recirculation
air filtration of all types of ventilation systems, especially in
the automotive industry. In combination with Wetzel F8/F9 Compact
filters impressive filtration results can be achieved.
-The extraordinary stable construction of WP filters and the low
pressure drop development over the entire service combined with the
extremely high dust holding capacity make WP filters the ideal
protectors of gas turbines and compressors in the pre-filtration
stage.
-The microbiologically inactive media and frame components
predestine the WP series as ideal filter for the use in supply,
exhaust and recirculated air filtration systems in ventilation
systems of the food and beverage industry like industrial bakeries,
prefiltration in dairy industry, cooked meal production plants etc.
-RS Pocket Filters are used in demanding air conditioning
applications on cruise ships, laboratories, hospitals, airports,
production workshops and machine rooms.
-Rs filters are well established as pre filters in oil mist
filtration systems.
