    Washable Synthetic Pocket Air Filter ABS Plastic Frame F9 Bag Filter

    Ask Lasest Price
    Brand Name : RS
    Model Number : DL
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 1000 Piece/Pieces per Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Washable Synthetic Pocket Air Filter ABS Plastic Frame F9 Bag Filter

    Product description

    Bag-style medium-efficiency filter with its unique bag structure ensures that the air flow is evenly filled with the entire bag. The unique hot-melt technology prevents over-squeezing or leakage between the bags, which reduces resistance and maximizes dust holding capacity. The reinforced "bag support grille" prevents the filter from shrinking or bending under extreme operating conditions.

    The medium-efficiency bag filter can be used as an ideal medium-efficiency filter for use in environments with high humidity, high airflow, and high dust loads. After the introduction of the bag filters, their application in the pharmaceutical, automotive and food manufacturing industries, commercial buildings, and various industrial and ventilation systems have successfully demonstrated that they have increased their industry standards with value and performance.

    Product Name
    Medium efficiency air filter
    Material
    Ultrafine synthetic fiber,"V" type filter bag structure
    External Frame
    Aluminum alloy / Galvanized sheet, 21mm thickness flange
    Inner frame
    Galvanized sheet or wire frame + Aluminum clips or Galvanized clips
    Efficiency

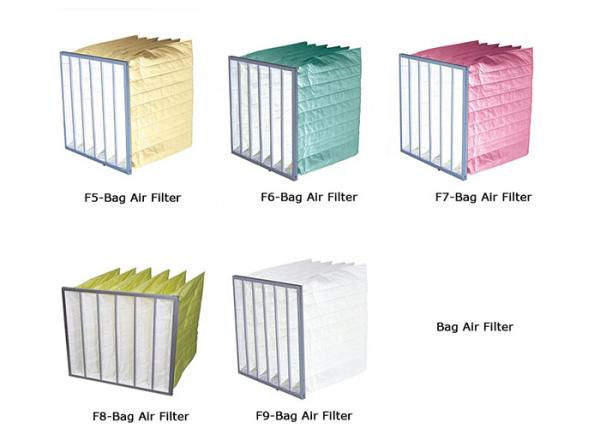

    F5, F6, F7, F8, F9
    Fire-proof level
    UL- 2 listed (UL900)
    Operating temperature
    90℃
    Humidity
    ≤100%RH
    Recommended Max. final resistance
    ≤600Pa

    Features

    ·Large dust holding capacity


    ·High efficiency


    ·Good air permeability


    ·Long working life

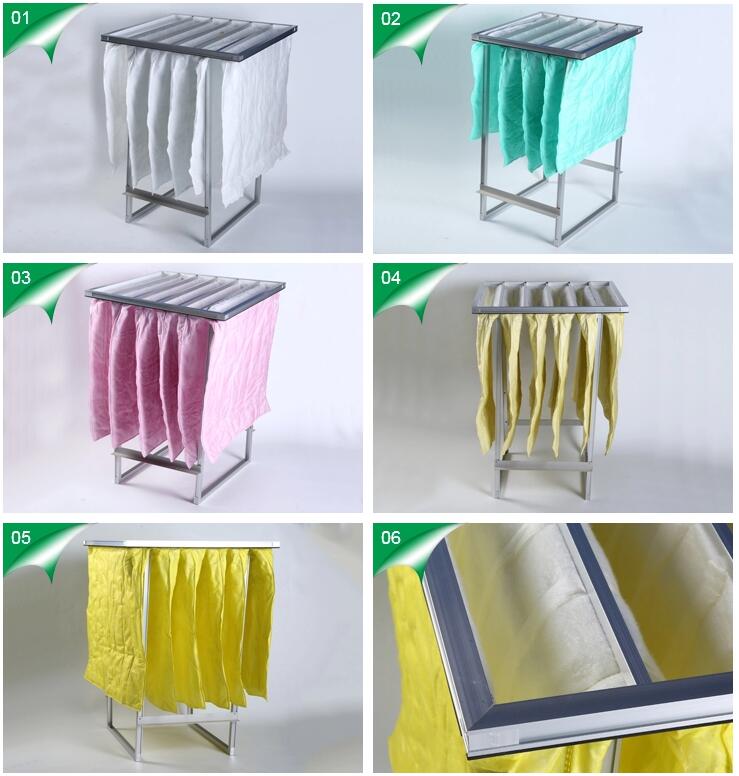

    Between each pocket there is a metal stick to make frame firm, and the separation material of each pocket can avoid the filter over expanded under the pressure.

    Ultrasonic sealing make the filter more strong and not easy to break.

    Adopted fine synthetic fiber instead of some fiberglass material.

    Material is made of antistatic fiber, large dust holding capacity and long working life.

    Pocket mesh efficiency has five different types for choice: 35%,45%,65%,85%and 95%


    Application

    The medium effency pocket filter is uesed for non-dust room, hospital, pharmaceutical factory, electronics factory, spray booth and other filtration systems which are in high need of clean air.
