    Non Woven Media Pocket Air Filter 5-8KG For AHU Ventilation System

    Ask Lasest Price
    Brand Name : RS
    Model Number : DL
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 1000 Piece/Pieces per Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

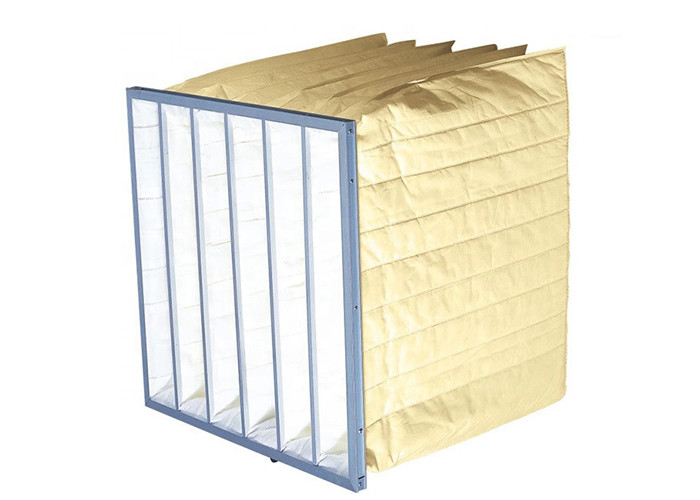

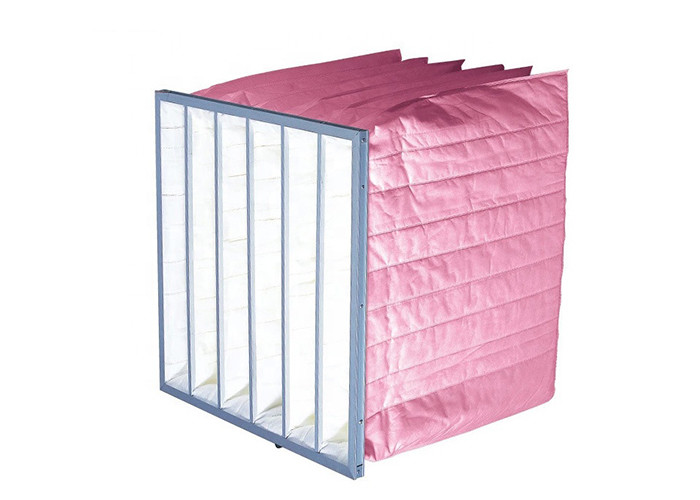

    Non Woven Media Pocket Air Filter 5-8KG For AHU Ventilation System

    Non Woven Media Pocket Air Filter For Ventilation System

    Product description

    Each filter bag is made of ultra-fine synthetic fibers in a special weave process to avoid the discomfort that traditional glass fiber material may cause to the human body. The filter media contains electrostatic fibers, which are particularly excellent in the filtration of sub-micron dust particles. Therefore, the bag filter has the characteristics of high dust capture rate, high air permeability, and long service life.

    The four sides of the filter bag are fused by ultrasonic and each filter bag is separated by a metal strip, which not only increases the strength, but also prevents the filter bag from breaking due to the wind-cut friction under high wind velocity condition.

    Each filter bag has six separators evenly distributed in the bag in case of over-expansion and mutual obstruction when under wind pressure. This structure increases the effective filter area and filtration efficiency.

    Efficiency: F5 / F6 / F7 / F8 / F9

    Media: Synthetic fiber

    Pocket type: Ultrasonic bag/Sewing bag

    Optional thickness: Aluminum / GI: 21, 25, 46 Plastic: 25

    Max Temperature: 50℃

    Max Humidity: 100%

    Features:

    Large dust holding capacity and stable performance

    Washable (Limited)

    Large air volume, low resistance and high efficiency

    Long lifespan

    100% factory inspection

    ”V” type pocket structure, economy and high performance cost

    Specification

    Width

    (mm)

    Height

    (mm)

    Depth

    (mm)

    Pockets Air flow(m3)

    Initial Resistance

    (<Pa)

    Final Resistance

    (Pa)

    Media area(m2) Dust Holding(g) Efficiency
    295 595 500 3 1400 50 250-300 2.22 440 F5
    295 595 500 3 1400 65 250-300 2.22 350 F6
    295 595 500 3 1400 80 300-400 2.22 320 F7
    295 595 500 3 1400 105 300-400 2.22 270 F8
    295 595 500 3 1400 120 400-450 2.22 250 F9
    595 595 500 3 1550 50 250-300 2.54 460 F5
    595 595 500 3 1550 65 250-300 2.54 410 F6
    595 595 500 3 1550 80 300-400 2.54 360 F7
    595 595 500 3 1550 105 300-400 2.54 310 F8
    595 595 500 3 1550 120 400-450 2.54 280 F9
    595 595 500 5 2300 50 250-300 3.81 690 F5
    595 595 500 5 2300 65 250-300 3.81 610 F6
    595 595 500 5 2300 80 300-400 3.81 540 F7
    595 595 500 5 2300 105 300-400 3.81 460 F8
    595 595 500 5 2300 120 400-450 3.81 420 F9
    595 595 500 6 2700 50 250-300 4.45 800 F5
    595 595 500 6 2700 65 250-300 4.45 710 F6
    595 595 500 6 2700 80 300-400 4.45 630 F7
