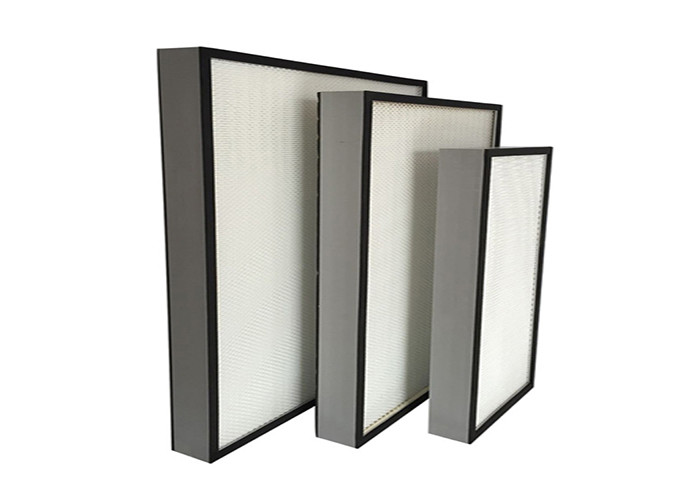

Air Conditioning System Hepa Pleated Panel Air Filters H10- H13 High Efficiency Air Filter
Features
Material and performance
External frame | Aluminum |
Filter medium | Fiberglass |
Partition | Uncoate ,aliuminum foil |
Sealant | Polyurethane adhesive |
Max.temperature | 85°C |
Max. humidity | 80%RH |
Specification and technical parameters
Model NO. | Size L*W*H (mm) | Rated air flow (m³/h) | Initial resistance (pa) | Efficiency 0.3μm(flame method) |
BKL | 320*320*220 | 400 | ≤220 | 99.99% |
BKL | 484*484*220 | 1000 | ||
BKL | 610*610*150 | 1000 | ||
BKL | 630*630*220 | 1500 | ||
BKL | 915*610*150 | 1500 | ||
BKL | 595*595*290 | 2000 | ||
BKL | 1220*610*150 | 2000 | ||
BKL | 1260*630*220 | 3000 | ||
BKL | 945*630*220 | 2200 | ||
special size can be according to customer special requirement |
Applications
Panel air handling unit air filter are used for high grade purification equipment,such as Office Building, Hospital and plant purification system.
![]() |
