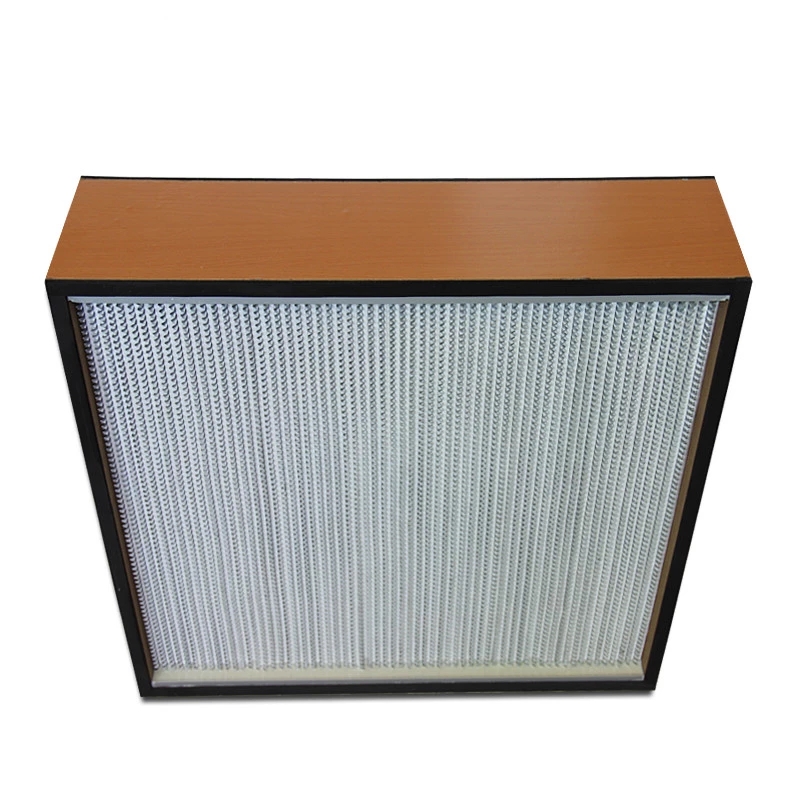

Wooden Frame Deep Pleat HEPA air filter wood box clapboard big air CFM filters

Product Description

High-efficiency air filters are mainly used to trap particulate dust below 0.5um and various suspended materials. Hepa filter is mainly composed of filter element and shell. The basic requirement is high filtration efficiency, low flow resistance, and continuous use for a long time to reduce the cost of consumables.

The filter element refers to the air filter plays a crucial role in the air purification industry.

Feature:

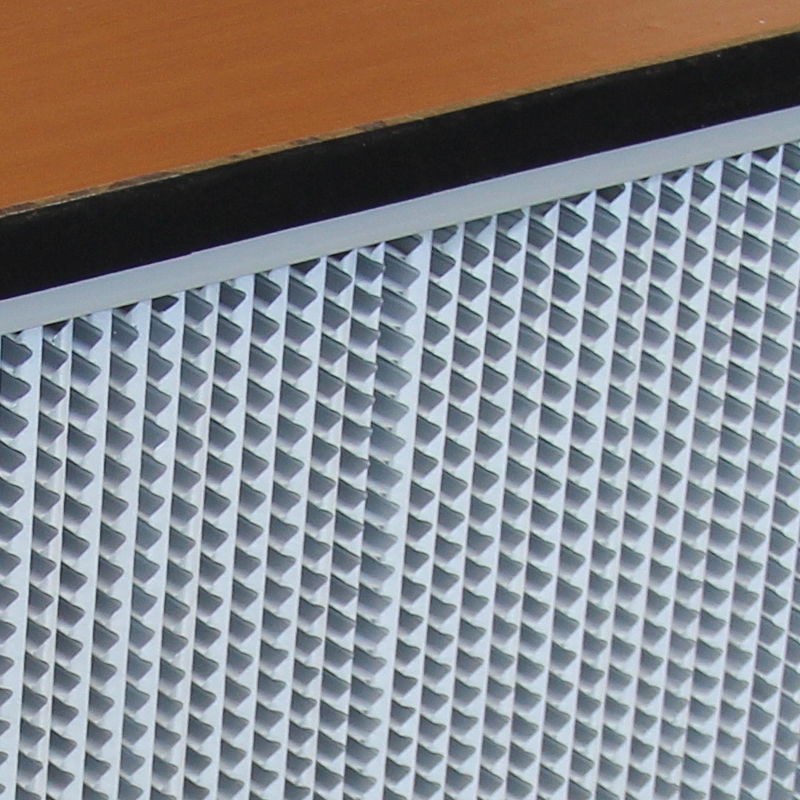

1). A separator high-efficiency filter uses ultra-fine fiber as filter material,and high-quality hot rolled kraft paper or offset paper or aluminum platinum as the partition plate, and is made of wood frame or aluminum alloy frame glue, and the deep pleat hepa filter has high filtration efficiency. Low resistance, large air volume advantages.

2). Deep pleat hepa filter filter uses a double-sided stencil coated paper as a separator, in order to prevent the separator from shrinking due to the effect of cold, hot, dry, and wet, thereby emitting particles. And suitable for low level non-unidirectional flow projects with various purification equipment and cleanrooms.

3). In the separator filter, the aluminum separator filter is mainly used in high temperature or high humidity environment, and the paper separator filter is used in ordinary clean environment. The air volume of the partition is relatively large and can be used as a high temperature resistant filter.

Application:

Frame: wooden frame

Filter: Superfine glass fiber filter paper

Sealant: Polyurethane

Separator: Aluminum foil separator or paper separator

Working temperature: -20~90°C

Operating Humidity: Aluminum separator ≤ 99%, paper separator ≤ 80%
