    Air Handling Unit Deep Pleat Air Filter V Bank 610*610*292mm

    Ask Lasest Price
    Brand Name : RS
    Model Number : WGK
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 1000 Piece/Pieces per Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

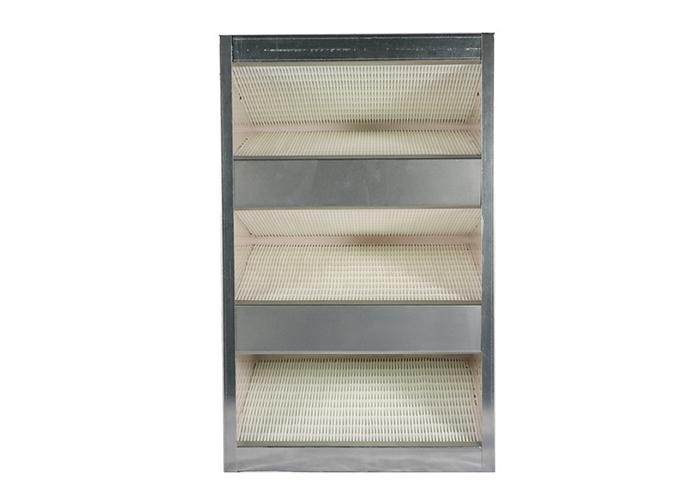

    Air Handling Unit Deep Pleat Air Filter V Bank 610*610*292mm

    610*610*292 High Efficiency V-bank Shape HVAC System air handling unit Hepa Air Filter


    Product Description

    V bank compact filter can be used for the end of the high efficiency filter system or front-end filter pre-filtration of ultra-high efficiency filter system.

    Feature:

    1. High efficiency;

    2. Large filter area;

    3. Large air flow,

    4. Wind speed uniformity is good,

    5. Low pressure drop,

    6. Long service life.

    Detailed Information:

    1. Model :WGK
    2. Filtration Grade: HEPA
    3. Filter Media: Fiberglass
    4. Frame Materia: Galvanized steel /Plastic
    5. Sealant/Gasket: Polyurethane
    6. Temperature: 70°C
    7. Humidity :95%
    8. Efficiency :99.99% @0.3um
    9. Construction: V-bank

    10. Recommended final pressure drop :600Pa.

    Dimensions:

    *customized product is avaliable.

    ModelWidthHeightDepthFilter elementsAirflow and pressure dropEfficiency
    (mm)(mm)(mm)(pcs)(m3/h&pa)
    WGK610*610*292 (7V)610610292143300/220H13
    WGK610*610*292 (6V)610610292123300/220H13
    WGK610*610*292 (5V)610610292102200/220H13
    WGK610*305*292 (5V)610305292101100/220H13
    WGK305*610*292 (3V)30561029262100/220H13
    WGK592*592*292 (5V)592592292102700/220H13
    WGK592*592*292 (4V)59259229282100/220H13
    WGK592*592*292 (3V)59259229262100/220H13
    WGK592*592*292 (2V)59259229241400/220H13


    Application

    V-bank compact filter is used in the large air flow systems of electronic, pharmaceutical, hospital, laboratory, food ,processing and optical facilities etc.
